UL VW-1 expandable braided polyester sleeving For Cable Protection

Certification
Good quality Corrugated Flexible Tubing for sales
Good quality Corrugated Flexible Tubing for sales
I got it and already delivered to the customer who is happy. Hope to have some more business soon.

—— Nicolas

All samples look great!

—— Rob

Your material is good. I am happy to see 100% perfect matching material for us

—— Gang Won Lee

Your Material is good, I will arrange to order it soon.

—— Acosta

Nothing is impossible for a willing heart.

—— Mahajan

I'm Online Chat Now

UL VW-1 expandable braided polyester sleeving For Cable Protection

China UL VW-1 expandable braided polyester sleeving For Cable Protection supplier
UL VW-1 expandable braided polyester sleeving For Cable Protection supplier UL VW-1 expandable braided polyester sleeving For Cable Protection supplier UL VW-1 expandable braided polyester sleeving For Cable Protection supplier UL VW-1 expandable braided polyester sleeving For Cable Protection supplier

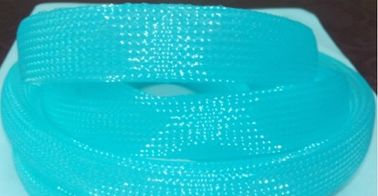

Large Image :  UL VW-1 expandable braided polyester sleeving For Cable Protection

Product Details:

Place of Origin: China
Certification: SGS

Payment & Shipping Terms:

Minimum Order Quantity: 1000meters
Price: Deliberate
Packaging Details: Roll
Delivery Time: 5~7days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 50000meters /day
Contact Now
Detailed Product Description

UL VW-1 expandable braided polyester sleeving For Cable Protection


Specifications:
Economical & easy to install light weight, and flexible
Easy to be Cut & abrasion resistant
Halogen free



Feature:

Material: PET Melting Point: 230°C+5
Temperature Range: -50°C ~+150°C Fire Resistance Rating: VW-1
Certificate: SGS, Reach And ROHS Colors:

Black/white/clrear/blue/

pink/yellow/red/yellow




Advantages:
1. Economical & easy to install light weight, and flexible
2.Resists gasoline, chemicals & cleaning solvents
3.High tensile strength
4. Easy to be Cut & abrasion resistant


Description:
Our PET expandable sleeving is braided from 0.20MM or 0.25MM polyethylene terepthalate (PET) monofilament yarn. The sleeving easily expands up to 150% and gently constricts around irregular shapes. It remains flexible over a wide temperature range and is resistant to chemical degradation, UV radiation and abrasion.



Application:
Expandable braided sleeves is ideal for a limitless number of electronic, automotive, marine and industrial wire management and bundling applications. Examples include engine compartment dress up, home theater wire management, customizing computer case wiring, office wire management, automotive harnesses, scuba hose protection, and many more. Threads of different colors and textures could be woven into different patterns. Each of our products is tailored to the client's business and needs.


Specification:


Part Number

SIZE

Material

Expandable Range

Temperature Range

mm

inch

mm

inch

PET03

3MM

1/8"

Polyester(PET)

2.4--6.4

3/32"--1/4"

-103°F-- 257°F

-75°C-- 125°C

PET06

6MM

1/4"

Polyester(PET)

3.2--11.1

1/8"--7/16"

-103°F-- 257°F

-75°C-- 125°C

PET08

8MM

5/16"

Polyester(PET)

6.4--12.7

1/4"--1/2"

-103°F-- 257°F

-75°C-- 125°C

PET10

10MM

3/8"

Polyester(PET)

4.8--15.9

3/16"--5/8"

-103°F-- 257°F

-75°C-- 125°C

PET12

12MM

1/2"

Polyester(PET)

6.4--19.1

1/4"--3/4"

-103°F-- 257°F

-75°C-- 125°C

PET16

16MM

5/8"

Polyester(PET)

9.5--25.4

3/8"--1"

-103°F-- 257°F

-75°C-- 125°C

PET19

19MM

3/4"

Polyester(PET)

12.7--31.8

1/2"--1-1/4"

-103°F-- 257°F

-75°C-- 125°C

PET25

25MM

1"

Polyester(PET)

15.9--38.1

5/8"--1-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET32

32MM

1 -1/4"

Polyester(PET)

19.1--44.5

3/4"--1-3/4"

-103°F-- 257°F

-75°C-- 125°C

PET38

38MM

1 -1/2"

Polyester(PET)

25.4--63.5

1"--2-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET45

45MM

1 -3/4"

Polyester(PET)

31.8--69.9

1-1/4"--2-3/4"

-103°F-- 257°F

-75°C-- 125°C

PET51

51MM

2"

Polyester(PET)

38.1--88.9

1-1/2"--3-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET64

64MM

2 -1/2"

Polyester(PET)

44.5--114.3

1-3/4"--4-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET76

76MM

3"

Polyester(PET)

63.5--120.7

2-1/2"--4-3/4"

-103°F-- 257°F

-75°C-- 125°C



UL VW-1 expandable braided polyester sleeving For Cable Protection

UL VW-1 expandable braided polyester sleeving For Cable ProtectionUL VW-1 expandable braided polyester sleeving For Cable Protection

UL VW-1 expandable braided polyester sleeving For Cable Protection
