Plastic Flexbile PVC Tubing UL VW-1 Black PVC Hose Flame Retardant For Wire Harness

Certification
Good quality Corrugated Flexible Tubing for sales
Good quality Corrugated Flexible Tubing for sales
I got it and already delivered to the customer who is happy. Hope to have some more business soon.

—— Nicolas

All samples look great!

—— Rob

Your material is good. I am happy to see 100% perfect matching material for us

—— Gang Won Lee

Your Material is good, I will arrange to order it soon.

—— Acosta

Nothing is impossible for a willing heart.

—— Mahajan

I'm Online Chat Now

Plastic Flexbile PVC Tubing UL VW-1 Black PVC Hose Flame Retardant For Wire Harness

China Plastic Flexbile PVC Tubing UL VW-1 Black PVC Hose Flame Retardant For Wire Harness supplier
Plastic Flexbile PVC Tubing UL VW-1 Black PVC Hose Flame Retardant For Wire Harness supplier Plastic Flexbile PVC Tubing UL VW-1 Black PVC Hose Flame Retardant For Wire Harness supplier

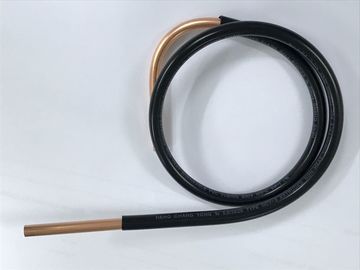

Large Image :  Plastic Flexbile PVC Tubing UL VW-1 Black PVC Hose Flame Retardant For Wire Harness

Product Details:

Place of Origin: China
Brand Name: HENGCHANGYONG
Certification: ROHS
Model Number: HCY-3 HCY-6
Working: -30˚C~105˚C
color: white/black/grey/silver/red/blue/pink/yellow
Materials: PVC

Payment & Shipping Terms:

Minimum Order Quantity: 1000meters
Price: Deliberate
Packaging Details: Roll
Delivery Time: 5~7days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 50000meters /day
Contact Now
Detailed Product Description
Size: ID:1mm~33mm Approval: ROHS UL
Voltage Rating: 300V 600V Flammability:: VW-1



Black PVC Tubing UL VW-1 , Plastic Soft PVC Tubing For Wire Harness

Features:



1. Material: polyvinyl chloride, called PVC


2. Working temperature: -30~+105 ºC


3. Flexible, Soft, Flame retardant


4. Color: Black, clear, red, blue, green, yellow,white...


5. Environmental standards: ROHS UL



Product Features: Soft, has good electrical and physical properties, acid, corrosion resistance, stable performance, etc.


Applications: All kinds of electrical appliances, industrial appliances, lighting, automotive wiring harness, electronic components, motor leads, machinery, toys, stationery and other fields.

Technical Data:


Property Typical Performance
Yield Strength ≥10.41MPa
Breakage Elongation (%) ≥100%
Voltage 300V;600V
Flexibility Outstanding
Flame resistance VW-1


Dimensions:

I.D.(mm) Wall thickness(mm) Packing size (m/r)
WL-300 WL-600
0.80±0.1 0.25±0.05 0.40±0.05 500
1.0±0.1 0.30±0.05 0.40±0.05 500
1.5±0.1 0.33±0.05 0.45±0.05 400
2.0±0.2 0.33±0.05 0.50±0.05 400
2.5±0.2 0.35±0.05 0.50±0.05 300
3.0±0.2 0.40±0.05 0.50±0.05 300
3.5±0.2 0.40±0.05 0.50±0.05 300
4.0±0.2 0.45±0.05 0.55±0.05 300
4.5±0.3 0.45±0.05 0.55±0.05 300
5.0±0.3 0.45±0.05 0.55±0.05 300
6.0±0.3 0.45±0.05 0.55±0.05 300
7.0±0.3 0.45±0.05 0.55±0.05 150
8.0±0.35 0.45±0.05 0.55±0.05 150
9.0±0.35 0.50±0.05 0.60±0.05 150
10.0±0.35 0.55±0.10 0.65±0.10 150
11.0±0.40 0.55±0.10 0.65±0.10 150
12.0±0.40 0.55±0.10 0.65±0.10 150
13.0±0.40 0.55±0.10 0.65±0.10 150
14.0±0.40 0.55±0.10 0.65±0.10 150
15.0±0.40 0.60±0.10 0.70±0.10 50
16.0±0.40 0.60±0.10 0.70±0.10 50
17.0±0.40 0.60±0.10 0.70±0.10 50
18.0±0.40 0.60±0.10 0.70±0.10 50
19.0±0.40 0.65±0.10 0.75±0.10 50
20.0±0.50 0.65±0.10 0.75±0.10 50
21.0±0.50 0.65±0.10 0.75±0.10 50
22.0±0.50 0.70±0.10 0.80±0.10 50
23.0±0.50 0.70±0.10 0.80±0.10 50
24.0±0.50 0.75±0.10 0.85±0.10 50
25.0±0.50 0.75±0.10 0.85±0.10 50
26.0±0.50 0.85±0.10 0.85±0.10 50


Plastic Flexbile PVC Tubing UL VW-1 Black PVC Hose Flame Retardant For Wire Harness
