Flame Heat Shield Fire proof fiberglass sleeving for hydraulic pipe protection

China Flame Heat Shield Fire proof fiberglass sleeving for hydraulic pipe protection supplier
Flame Heat Shield Fire proof fiberglass sleeving for hydraulic pipe protection supplier Flame Heat Shield Fire proof fiberglass sleeving for hydraulic pipe protection supplier Flame Heat Shield Fire proof fiberglass sleeving for hydraulic pipe protection supplier Flame Heat Shield Fire proof fiberglass sleeving for hydraulic pipe protection supplier

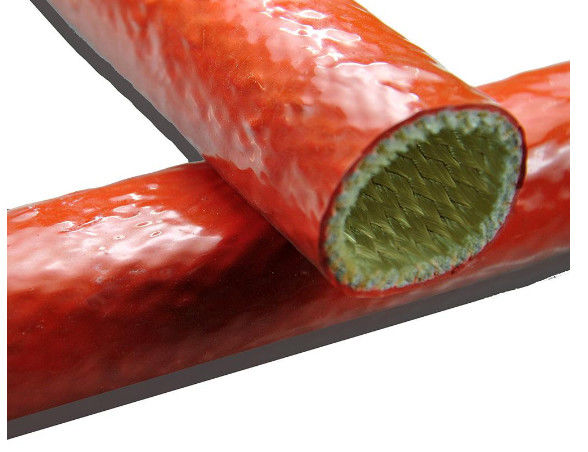

Large Image :  Flame Heat Shield Fire proof fiberglass sleeving for hydraulic pipe protection

Product Details:

Place of Origin: China
Certification: SGS
Model Number: Fiberglass Sleeving

Payment & Shipping Terms:

Minimum Order Quantity: 1000meters
Price: Negotiate
Packaging Details: roll
Delivery Time: 5~7days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 50000meters /day
Contact Now
Detailed Product Description
Materials: Fiber Glass Certificate: ROHS
Color: White Size: 0.5~130mm

Fire-proof sleeving is fabricated from a dense E-glass fiberglass with a thick coating of self-extinguishing high temperature silicone rubber which is engineered to protect hoses,cables and wire harness from damage due to exposure to extreme heat,open flame and molten splash.

Fire-proof sleeving also provides a high degree of insulation value,protecting hot or cold or cryogenic lines,pipes and tubing from heat or cold loss,proving energy savings and abrasion resistance.

Application:

Fire-proof sleeving is used to protect fuel lines,hydraulic and oil lines from heat and to prolong the life of wiring and hoses in cases of a fire so that critical systems can function longer in the aviation and marine fields.



Technical Data:

Material:Fiberglass fiber

Coating material:Silicone

Operating temperature:-50℃-+400℃

Flammability:VW-1

Standard color:Brick Red

Voltage:7.0KV

Approval:Rohs

Cutting tool:Scissors






Inside diameter measurement






Inside diameter


Wall thickness


Range


Tolerance


4000V


7000V


0.5-2.0mm


+0.20-0.00mm


0.40±0.05mm


0.45±0.05mm


2.5-3.0mm


+0.25-0.00mm


0.40±0.05mm


0.50±0.05mm


3.5-5.0mm


+0.35-0.00mm


0.50±0.05mm


0.50±0.05mm


6.0-9.0mm


+0.50-0.00mm


0.55±0.05mm


0.60±0.05mm


10.0-12.0mm


+0.70-0.00mm


0.60±0.05mm


0.65±0.05mm


13.0-20.0mm


+0.80-0.00mm


0.65±0.05mm


0.70±0.05mm


22.0-35.0mm


+0.90-0.00mm


1.00±0.05mm


1.05±0.05mm










Specification:








ITEM


VALUE


Continuous Operating Temperature


-10ºC+200ºC


Temperature Endurance


265ºC±2ºC168>1/2 Original value of voltage


Aging Test


260ºC,6 hrs without crackle


Cold bend


Witout crackle


Horizontal Flame Test


<30 seconds


(V W-1)Flame Retardance


<30 seconds


Submerge Water Test


Not-sticky,non-deformed,non bated


Temperature-resistunce


+200ºC-10ºC


Average-voltage


4000V-7000V


Individual Value


2500V-5000V


Application:
Generally used in electrical and electronic wiring, lighting, industrial machinery, electric products, and other places of high temperature



Flame Heat Shield Fire proof fiberglass sleeving for hydraulic pipe protectionFlame Heat Shield Fire proof fiberglass sleeving for hydraulic pipe protection
