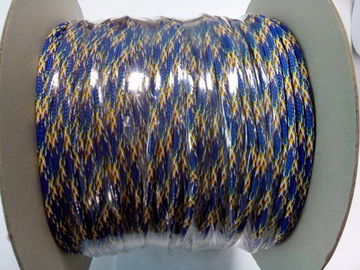

PET Expandable Braided Sleeving For Cable Protecting SGS UL Certificate

China PET Expandable Braided Sleeving For Cable Protecting  SGS UL Certificate supplier
PET Expandable Braided Sleeving For Cable Protecting  SGS UL Certificate supplier PET Expandable Braided Sleeving For Cable Protecting  SGS UL Certificate supplier PET Expandable Braided Sleeving For Cable Protecting  SGS UL Certificate supplier PET Expandable Braided Sleeving For Cable Protecting  SGS UL Certificate supplier

Large Image :  PET Expandable Braided Sleeving For Cable Protecting SGS UL Certificate

Product Details:

Place of Origin: China
Certification: UL ROHS
Model Number: PET Expandable Braided Sleeving

Payment & Shipping Terms:

Minimum Order Quantity: 1000meters
Price: Negotiate
Packaging Details: Roll
Delivery Time: 5~7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000meters /day
Contact Now
Detailed Product Description
Material: PET Melting Point: 230°C+5
Temperature Range: -50°C ~+150°C Fire Resistance Rating: VW-1
Certificate: SGS, Reach And ROHS Colors: Black/white/clrear/blue/pink/yellow/red/yellow

PET Expandable Braided Sleeving For Cable Protecting SGS UL Certificate


Specifications:
Economical & easy to install light weight, and flexible
Easy to be Cut & abrasion resistant
Halogen free


Technical data:
1. Size: 3mm~76mm
2. Operating range: -103F to 257F (-75C to 125C) temperature range
3. Melt Point:446F (230C)
4. Expands up to 150%
5. Available up to 4" in diameter
6. Colors:black, grey, white, red, green, blue, yellow, purple, pink, orange etc.
7.
Certificate: SGS, UL, RoHS approved
8.Halogen free



Feature:

Material: PET Melting Point: 230°C+5
Temperature Range: -50°C ~+150°C Fire Resistance Rating: VW-1
Certificate: SGS, Reach And ROHS Colors:

Black/white/clrear/blue/

pink/yellow/red/yellow




Description:
Our PET expandable sleeving is braided from 0.20MM or 0.25MM polyethylene terepthalate (PET) monofilament yarn. The sleeving easily expands up to 150% and gently constricts around irregular shapes. It remains flexible over a wide temperature range and is resistant to chemical degradation, UV radiation and abrasion.



Application
Expandable braided sleeves is ideal for a limitless number of electronic, automotive, marine and industrial wire management and bundling applications. Examples include engine compartment dress up, home theater wire management, customizing computer case wiring, office wire management, automotive harnesses, scuba hose protection, and many more. Threads of different colors and textures could be woven into different patterns. Each of our products is tailored to the client's business and needs.


Specification:


Part Number

SIZE

Material

Expandable Range

Temperature Range

mm

inch

mm

inch

PET03

3MM

1/8"

Polyester(PET)

2.4--6.4

3/32"--1/4"

-103°F-- 257°F

-75°C-- 125°C

PET06

6MM

1/4"

Polyester(PET)

3.2--11.1

1/8"--7/16"

-103°F-- 257°F

-75°C-- 125°C

PET08

8MM

5/16"

Polyester(PET)

6.4--12.7

1/4"--1/2"

-103°F-- 257°F

-75°C-- 125°C

PET10

10MM

3/8"

Polyester(PET)

4.8--15.9

3/16"--5/8"

-103°F-- 257°F

-75°C-- 125°C

PET12

12MM

1/2"

Polyester(PET)

6.4--19.1

1/4"--3/4"

-103°F-- 257°F

-75°C-- 125°C

PET16

16MM

5/8"

Polyester(PET)

9.5--25.4

3/8"--1"

-103°F-- 257°F

-75°C-- 125°C

PET19

19MM

3/4"

Polyester(PET)

12.7--31.8

1/2"--1-1/4"

-103°F-- 257°F

-75°C-- 125°C

PET25

25MM

1"

Polyester(PET)

15.9--38.1

5/8"--1-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET32

32MM

1 -1/4"

Polyester(PET)

19.1--44.5

3/4"--1-3/4"

-103°F-- 257°F

-75°C-- 125°C

PET38

38MM

1 -1/2"

Polyester(PET)

25.4--63.5

1"--2-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET45

45MM

1 -3/4"

Polyester(PET)

31.8--69.9

1-1/4"--2-3/4"

-103°F-- 257°F

-75°C-- 125°C

PET51

51MM

2"

Polyester(PET)

38.1--88.9

1-1/2"--3-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET64

64MM

2 -1/2"

Polyester(PET)

44.5--114.3

1-3/4"--4-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET76

76MM

3"

Polyester(PET)

63.5--120.7

2-1/2"--4-3/4"

-103°F-- 257°F

-75°C-- 125°C
