High Voltage Resistant Rubber Resin Soft Silicone Rubber Tube / Pipes Multi Color
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | silicone rubber heat shrink tubing,silicone rubber hose |
||
|---|---|---|---|

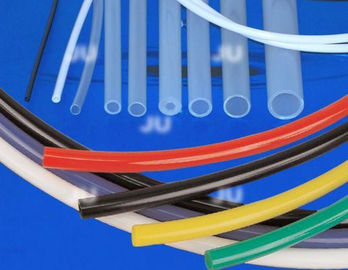

High Voltage Resistant Rubber Resin Soft Silicone Rubber Tube / Pipes Multi Color for Customized
Feature:
1. Soft, fire retardant,
2. Harmless non-toxic tasteless,
3. Arc resistance, corona resistance
Introduction:
Our silicone tube is made of high quality silicon rubber, is green pollution-free, strict inspection by SGS, through the RoHs, PAHs and the eight heavy metal such as silica gel products 100% silicone tube completely .the silicone tube Non-toxic, tasteless.
Silicone tube has soft, high temperature resistant, stable performance etc.
Application:
They are widely used in all kinds of household appliances, industrial appliances, lighting lamps and lanterns, electronic equipment insulation protection.
And also suitable for: small appliances (coffee pot, KaiShuiHu, iron, electric rice cooker, deep fryer, disinfection cabinet water dispensers, fruit pulp machine,
bread machine, burner, water heater, etc.) and electronic, automotive,
medical and other mechanical products.
Dimension:
| Size | Tolerance(mm) | Thickness and tolerance | |||
| 2500V(mm) | 4000V(mm) | 6000V(mm) | 7000V(mm) | ||
| φ0.8 | 0.8±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ1.0 | 1.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ1.5 | 1.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ2.0 | 2.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ2.5 | 2.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ3.0 | 3.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ3.5 | 3.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ4.0 | 4.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ4.5 | 4.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ5.0 | 5.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ5.5 | 5.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ6.0 | 6.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ6.5 | 6.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ7.0 | 7.0±0.20 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ7.5 | 7.5±0.20 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ8.0 | 8.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ9.0 | 9.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ10.0 | 10.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ11.0 | 11.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ12.0 | 12.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ13.0 | 13.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ14.0 | 14.0±0.30 | — | — | 1.50±0.20 | 2.00±0.25 |
| φ15.0 | 15.0±0.30 | — | — | 1.50±0.20 | 2.00±0.25 |
| φ20.0 | 20.0±0.30 | — | — | — | 2.50±0.3 |
