Flexo Pet Expandable Sleeving for Auto Cable Identification Sleeve
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PET | Melting Point: | 230°C+5 |
|---|---|---|---|
| Temperature Range: | -50°C ~+150°C | Fire Resistance Rating: | VW-1 |
| Certificate: | SGS, Reach And ROHS | Colors: | Black/white/clrear/blue/pink/yellow/red/yellow |
| High Light: | flexo pet expandable sleeving,expandable wire loom |
||

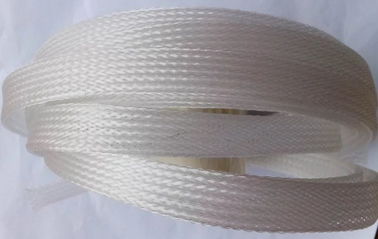

Flexo Pet Expandable Sleeving for Auto Cable Identification Sleeve
Specifications:
Economical & easy to install light weight, and flexible
Easy to be Cut & abrasion resistant
Halogen free
Product feacture:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
High flame resistance Pet braided expandable cable protection sleeve
Technical data:
1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife
Application:
It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required an additional protection.
Specification:
Part No | Size | Expanded Range(mm) | Packing (L) | |
| Flat width(mm) | Min(I) | Max.(O) | M/spool | |
| PET003 | 3 | 1 | 6 | 1000 |
| PET006 | 6 | 3 | 9 | 500 |
| PET008 | 8 | 5 | 16 | 350 |
| PET010 | 10 | 7 | 19 | 350 |
| PET012 | 12 | 8 | 24 | 300 |
| PET016 | 16 | 10 | 27 | 250 |
| PET019 | 20 | 14 | 30 | 200 |
| PET025 | 25 | 18 | 35 | 200 |
| PET032 | 32 | 20 | 50 | 150 |
| PET038 | 38 | 30 | 60 | 100 |
| PET045 | 45 | 35 | 75 | 100 |
| PET050 | 50 | 40 | 80 | 100 |
| PET064 | 64 | 45 | 105 | 100 |
| PET076 | 76 | 64 | 120 | 100 |
