High Flame Resistance PET Expandable Braided Sleeving Cable Protection

I'm Online Chat Now
Certification
China Shenzhen Tainy Electronic Co.,Ltd certification
China Shenzhen Tainy Electronic Co.,Ltd certification
I got it and already delivered to the customer who is happy. Hope to have some more business soon.

—— Nicolas

All samples look great!

—— Rob

Your material is good. I am happy to see 100% perfect matching material for us

—— Gang Won Lee

Your Material is good, I will arrange to order it soon.

—— Acosta

Nothing is impossible for a willing heart.

—— Mahajan

High Flame Resistance PET Expandable Braided Sleeving Cable Protection

High Flame Resistance PET Expandable Braided Sleeving Cable Protection
High Flame Resistance PET Expandable Braided Sleeving Cable Protection High Flame Resistance PET Expandable Braided Sleeving Cable Protection High Flame Resistance PET Expandable Braided Sleeving Cable Protection High Flame Resistance PET Expandable Braided Sleeving Cable Protection

Large Image :  High Flame Resistance PET Expandable Braided Sleeving Cable Protection Get Best Price

Product Details:
Place of Origin: China
Certification: SGS
Model Number: PET Expandable Braided Sleeving
Payment & Shipping Terms:
Minimum Order Quantity: 1000meters
Price: Negotiate
Packaging Details: Roll
Delivery Time: 5-7days
Payment Terms: TT
Supply Ability: 50000meters /day
Detailed Product Description
Material: PET Melting Point: 230°C+5
Temperature Range: -50°C ~+150°C Fire Resistance Rating: VW-1
Certificate: SGS, Reach And ROHS Colors: Black/white/clrear/blue/pink/yellow/red/yellow
High Light:

flexo pet expandable sleeving

,

expandable wire loom



High Flame Resistance PET Expandable Braided Sleeving Cable Protection





Specifications:
Economical & easy to install light weight, and flexible
Easy to be Cut & abrasion resistant
Halogen free


Technical data:
1. Size: 3mm~76mm
2. Operating range: -103F to 257F (-75C to 125C) temperature range
3. Melt Point:446F (230C)
4. Expands up to 150%
5. Available up to 4" in diameter
6. Colors:black, grey, white, red, green, blue, yellow, purple, pink, orange etc.
7.Certificate: SGS, UL, RoHS approved
8.Halogen free




Description :

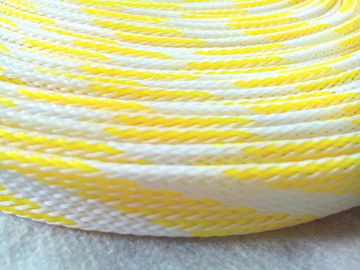

PET expandable sleeving is braided from 0.20MM or 0.25MM polyethylene terepthalate (PET) monofilament yarn. The sleeving easily expands up to 150% and gently constricts around irregular shapes. It remains flexible over a wide temperature range and is resistant to chemical degradation, UV radiation and abrasion.



 Application
Expandable braided sleeves is ideal for a limitless number of electronic, automotive, marine and industrial wire management and bundling applications. Examples include engine compartment dress up, home theater wire management, customizing computer case wiring, office wire management, automotive harnesses, scuba hose protection, and many more. Threads of different colors and textures could be woven into different patterns. Each of our products is tailored to the client's business and needs.


Specification:


Part Number

SIZE

Material

Expandable Range

Temperature Range

mm

inch

mm

inch

PET03

3MM

1/8"

Polyester(PET)

2.4--6.4

3/32"--1/4"

-103°F-- 257°F

-75°C-- 125°C

PET06

6MM

1/4"

Polyester(PET)

3.2--11.1

1/8"--7/16"

-103°F-- 257°F

-75°C-- 125°C

PET08

8MM

5/16"

Polyester(PET)

6.4--12.7

1/4"--1/2"

-103°F-- 257°F

-75°C-- 125°C

PET10

10MM

3/8"

Polyester(PET)

4.8--15.9

3/16"--5/8"

-103°F-- 257°F

-75°C-- 125°C

PET12

12MM

1/2"

Polyester(PET)

6.4--19.1

1/4"--3/4"

-103°F-- 257°F

-75°C-- 125°C

PET16

16MM

5/8"

Polyester(PET)

9.5--25.4

3/8"--1"

-103°F-- 257°F

-75°C-- 125°C

PET19

19MM

3/4"

Polyester(PET)

12.7--31.8

1/2"--1-1/4"

-103°F-- 257°F

-75°C-- 125°C

PET25

25MM

1"

Polyester(PET)

15.9--38.1

5/8"--1-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET32

32MM

1 -1/4"

Polyester(PET)

19.1--44.5

3/4"--1-3/4"

-103°F-- 257°F

-75°C-- 125°C

PET38

38MM

1 -1/2"

Polyester(PET)

25.4--63.5

1"--2-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET45

45MM

1 -3/4"

Polyester(PET)

31.8--69.9

1-1/4"--2-3/4"

-103°F-- 257°F

-75°C-- 125°C

PET51

51MM

2"

Polyester(PET)

38.1--88.9

1-1/2"--3-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET64

64MM

2 -1/2"

Polyester(PET)

44.5--114.3

1-3/4"--4-1/2"

-103°F-- 257°F

-75°C-- 125°C

PET76

76MM

3"

Polyester(PET)

63.5--120.7

2-1/2"--4-3/4"

-103°F-- 257°F

-75°C-- 125°C
