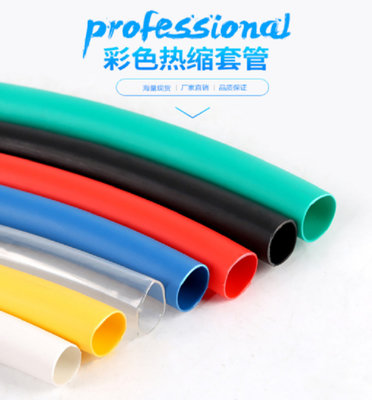

Color PE Heat Shrinkable Tube Flexible Flame Retardant 2:1

Color PE Heat Shrinkable Tube Flexible Flame Retardant 2:1
Color PE Heat Shrinkable Tube Flexible Flame Retardant 2:1 Color PE Heat Shrinkable Tube Flexible Flame Retardant 2:1 Color PE Heat Shrinkable Tube Flexible Flame Retardant 2:1 Color PE Heat Shrinkable Tube Flexible Flame Retardant 2:1

Large Image :  Color PE Heat Shrinkable Tube Flexible Flame Retardant 2:1 Get Best Price

Product Details:
Place of Origin: china
Brand Name: no
Certification: UL224
Payment & Shipping Terms:
Minimum Order Quantity: 100meters
Price: Negotiate
Packaging Details: roll
Delivery Time: 3-5days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 50000meters per day
Detailed Product Description
Material: PE Shrink Ratio: 2:1
Size: 1.0~250mm Color: White/black/yellow/blue/green/yellow
High Light:

Color PE Heat Shrinkable Tube

,

Flexible Heat Shrinkable Tube

,

Flame Retardant PVC Tubing

Heat shrinkable tube , Color Heat Shrink Tube Tubing , PE shrinkable tube


Model Number: HS-125H
Working temperature: -45ºC ~ 125ºC

Structure
Halogen free flame-retardant heat shrinkable tube is made of eco-friendly cross-linking polyolefin material under irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.

Usage
It is mainly used in electronics, telecommunication, automobiles,shipping and other manufacturing industries.

Characteristics

  1. Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance
  2. Shrink ratio: 2:1
  3. Shrink temperature: 84ºC ~ 120ºC
Property Unit Test Method Standard
Tensile Strength MPA ≥10.4(before aging) GB/T 1040
≥7.3(after aging) 158ºC*168h
Breakage Elongation (%) % ≥200(before aging) GB/T 1040
≥100(after aging) 158ºC*168h
Heat Shock - no sticking & no cracking 250ºC*4h
Cold Blend - no cracking -30ºC*4h
Breakdown Strength KV/mm ≥15 GB/T 1408
Dielectric Withstand 600V - Pass no breakdown for 2500V, 60s
300V - Pass no breakdown for 1500V,60s
Volume Resistivity Ω. cm ≥1×1014 GB/T 1410
Corrosion Performance - pass 158ºC*168h
Copper Stability - pass 158ºC*168h
Flammability - pass VW-1
